EW3 10D4
Subwoofer de 10" con doble bobina de 4 ohms
Features
- High Temp Voice Coil Wire Around Vented KSV Former
- Radial Basket Vents for Voice Coil Cooling
- Large Gauge Push Button Speaker Wire Terminals
- Proprietary Injection Molded Polypropylene Cone
- High Excursion Butyl Rubber Surround
- Extended Linear Roll Progressive Dampener
- Stealth Gasket for Custom Mounting Applications
- Propriotarty Protective Magnet Band
- Anti- Resonance Heavy Gauge Solid Steal Frame
- Optimized Drive Motor for Acurate Frequency Response
Specifications

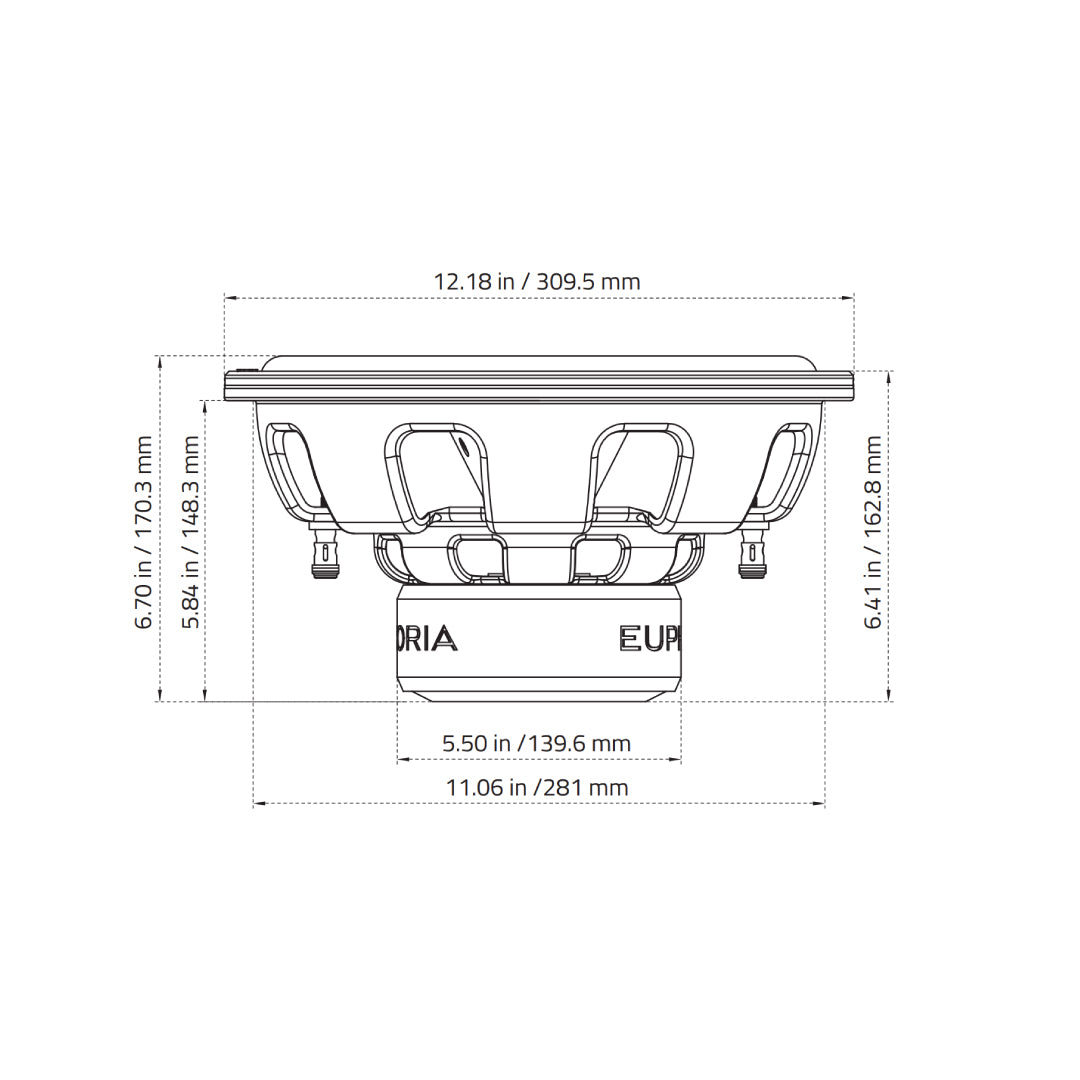

| Structure | 10” (25.4 cm) |
|---|---|
| Max Power | 750 Watts |
| Nominal Power | 250 Watts |
| Impedance | 4Ω Voice Coil |
| PARAMETERS | |
| Free Air Resonance (Fo) | 31.39 Hz |
| D.C. Voice Coil Resistance (Re) | 3.20Ω x 2 |
| Mechanical Quality Factor (Qms) | 9.86 |
| Electrical Quality Factor (Qes) | 0.399 |
| Total Quality Factor (Qts) | 0.384 |
| Equivalent Air Volume to Cms (Vas) | 49.41 L |
| Force Factor (BL) | 16.73 TM |
| Mass of Diaphragm/Coil (Mms) | 88.61 g |
| Sound Pressure Level (SPL) | 87.7 dB |
Description
Feel the Euphoria in every beat.
Introducing the Euphoria EW3 10D4, a 10-inch subwoofer that redefines your audio experience with unparalleled power and precision. Engineered with a powerful motor structure, this woofer maximizes bass output while ensuring your music sounds as tight and accurate as the day it was recorded. The innovative Stealth Lock Gasket and radial venting for voice coil cooling extend the durability, offering endless musical performance. With a dual 4Ω voice coil, 750 Watts max power, and 250 Watts nominal power, the EW3 SERIES SUBWOOFERS deliver a punch that will elevate your car audio system to new heights. Get ready to feel every beat and experience the true essence of sound with Euphoria.
