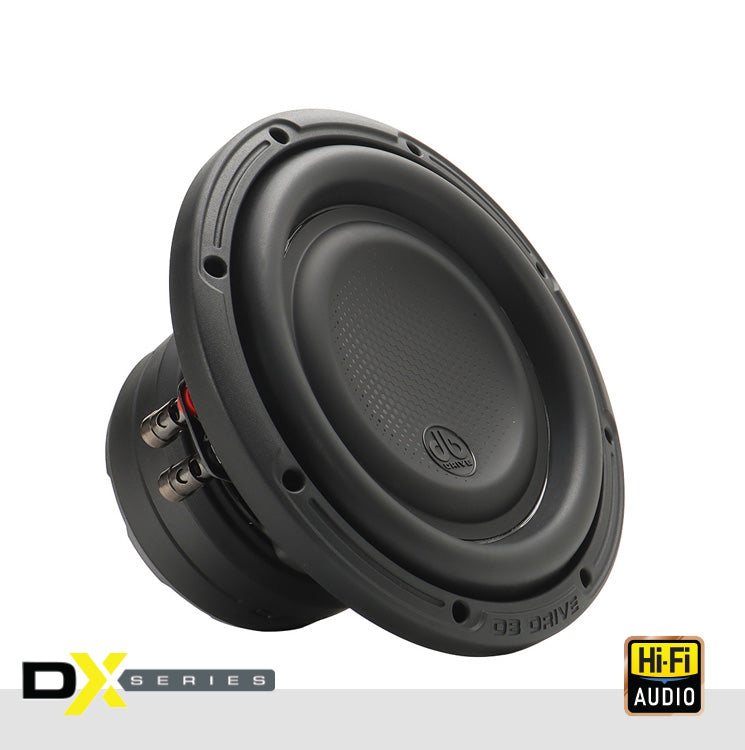

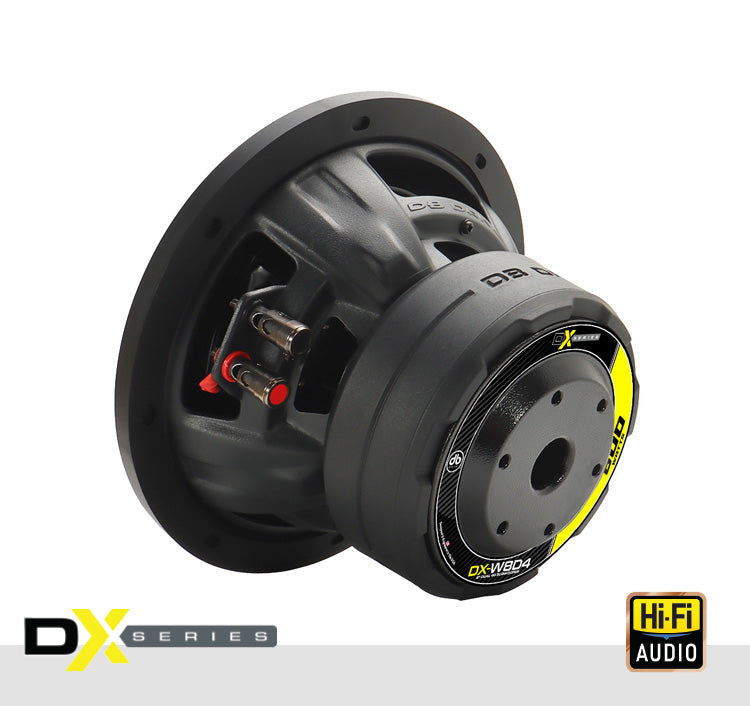

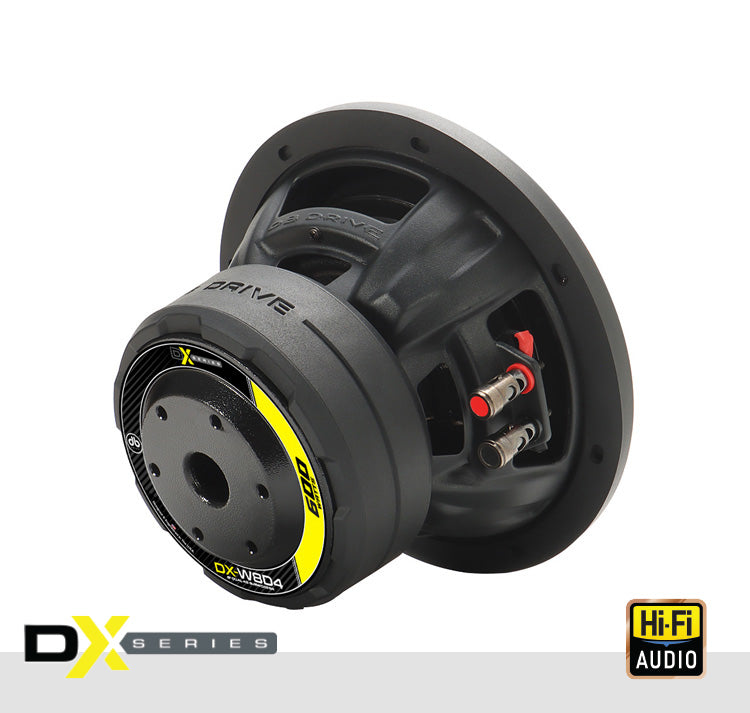

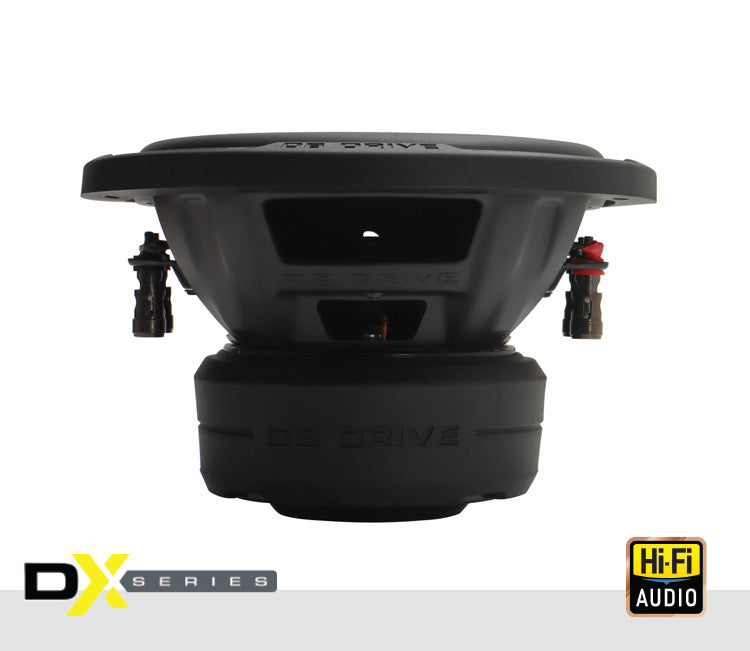

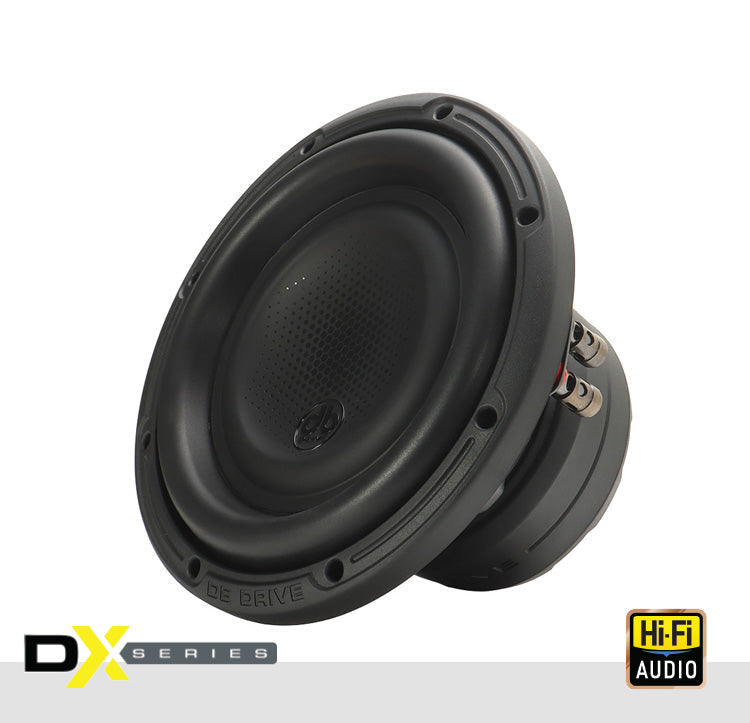

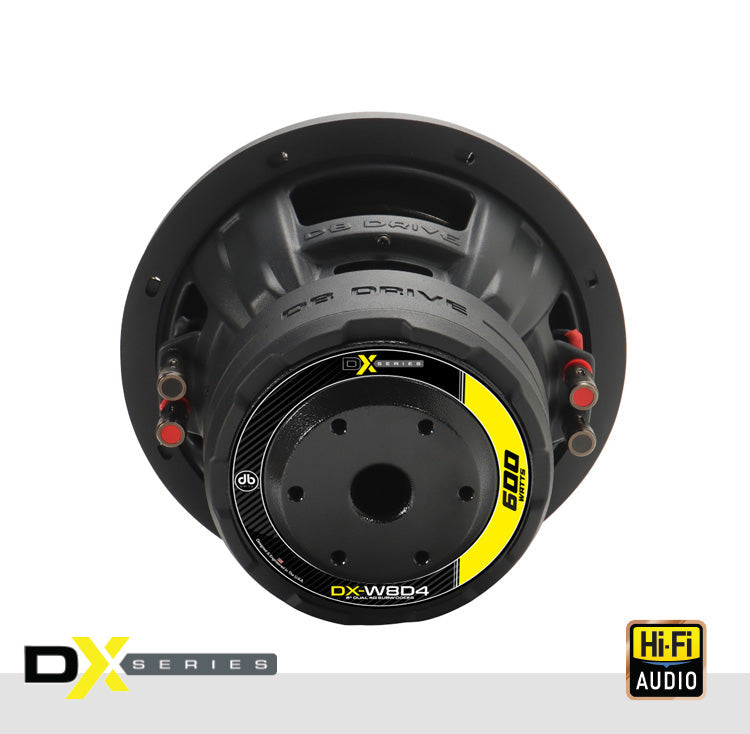

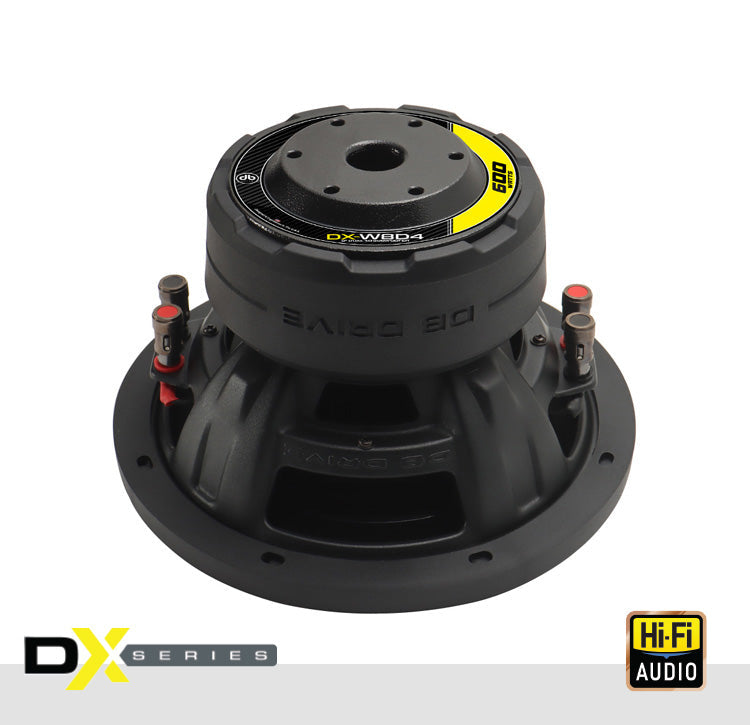

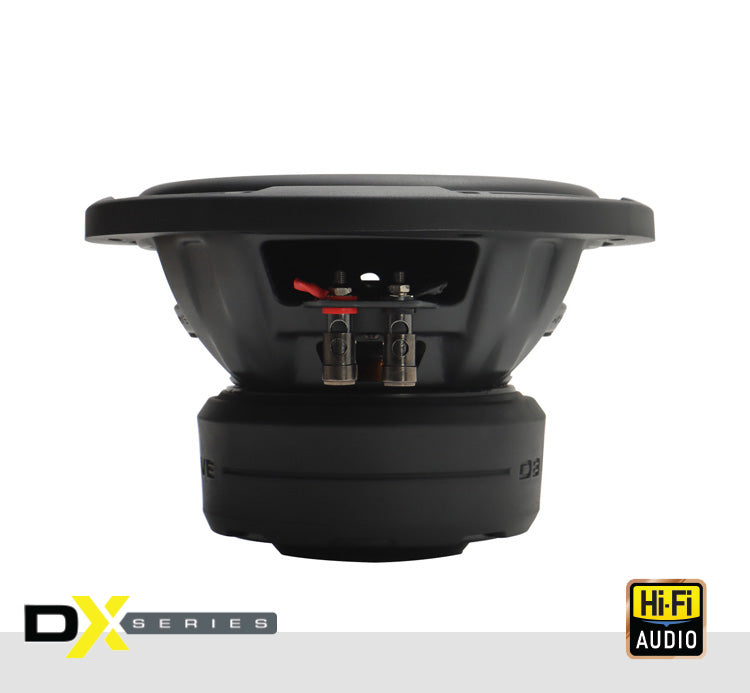

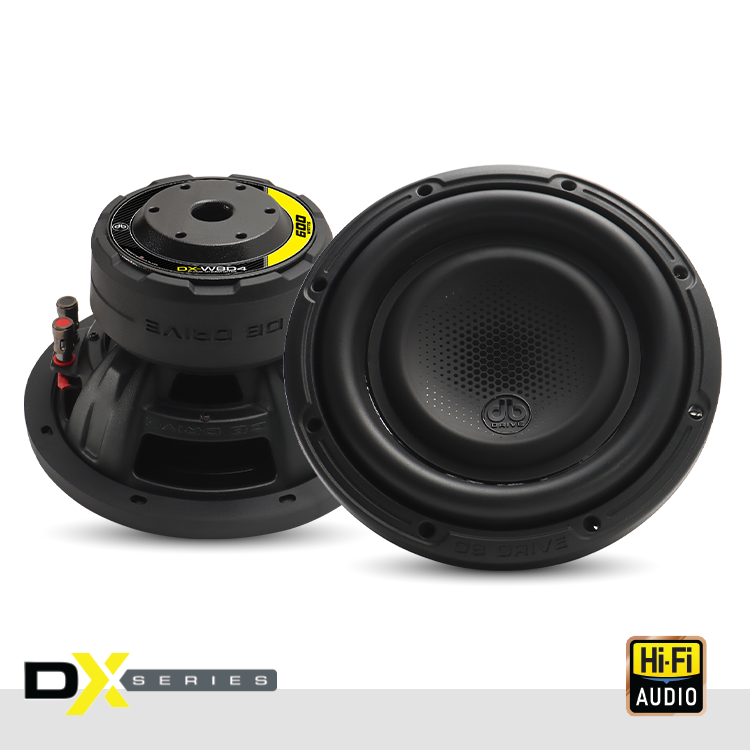

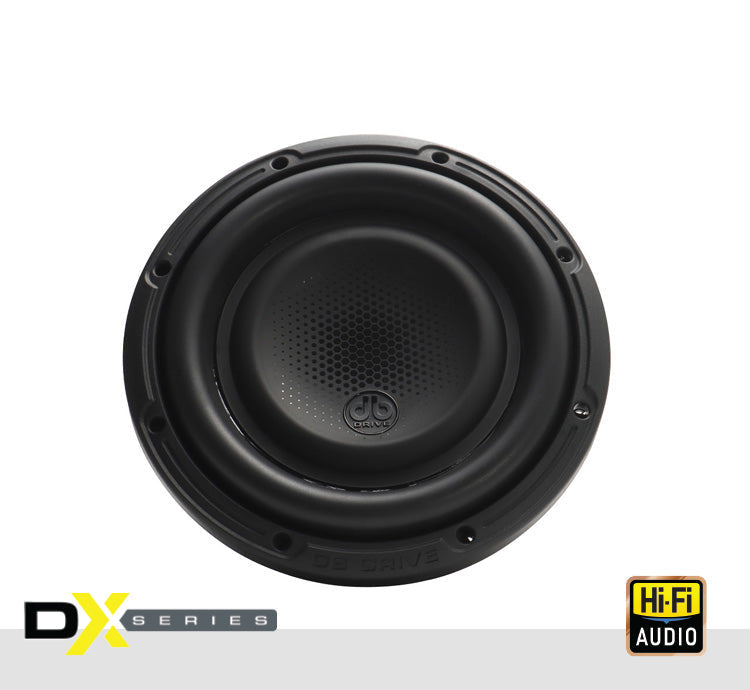

DX-W8D4
DX 8" Dual 4-Ohm Subwoofer
Precio regular
$ 2,999.00 MXN
Features
- 2″ (50.8mm) 4 Layer Voice Coil
- Injected PP Cone with rubber Surround
- Precision Excursion design
- High Strength Ferrite Oxide magnet
- Anti-resonant stamped steel basket with radial venting
- Linear dampening
- Compression Speaker Terminals
Specifications
Dynamic Power Handling
600 Watts
Nominal Power Handling
300 Watts
Impedance
Dual 4Ω Voice Coil
Resonant Frequency (fs)
43.321 Hz
D.C. Voice Coil Resistance (Re)
2 x 4Ω
Mechanical Quality Factor (Qms)
3.347
Electrical Quality Factor (Qes)
0.985
Total Quality Factor (Qts)
0.761
Equivalent Air Volume to Cms (Vas)
7.270 L
Mass of Diaphragm/Coil (Mms)
106.571 g
Force Factor (BL)
13.731
Sound Pressure Level (SPL)
79.7 dB
X-max
18
Description
The DB Drive DX-W8D4 8" subwoofer packs precision and power into a compact design, making it the perfect solution for tight spaces without compromising performance. Built with a 2″ 4-layer voice coil, an injected polypropylene cone with rubber surround, and a high-strength ferrite oxide magnet, this subwoofer is engineered for clean, controlled bass. Its anti-resonant stamped steel basket with radial venting and linear dampening technology ensures efficient airflow and long-lasting reliability. With 600W dynamic power handling and a dual 4Ω voice coil configuration, the DX-W8D4 delivers rich, responsive low frequencies—ideal for enhancing any car audio system.
